Snow Blowers HSM HSM1336 HSM1336IK2 ATDR/A SBCJ-5510001-9999999 FRAME (2) - American Rent All Sales & Svc

  1. Product Lines
  2. Snow Blowers
  3. HSM
  4. HSM1336
  5. HSM1336IK2 ATDR/A SBCJ-5510001-9999999

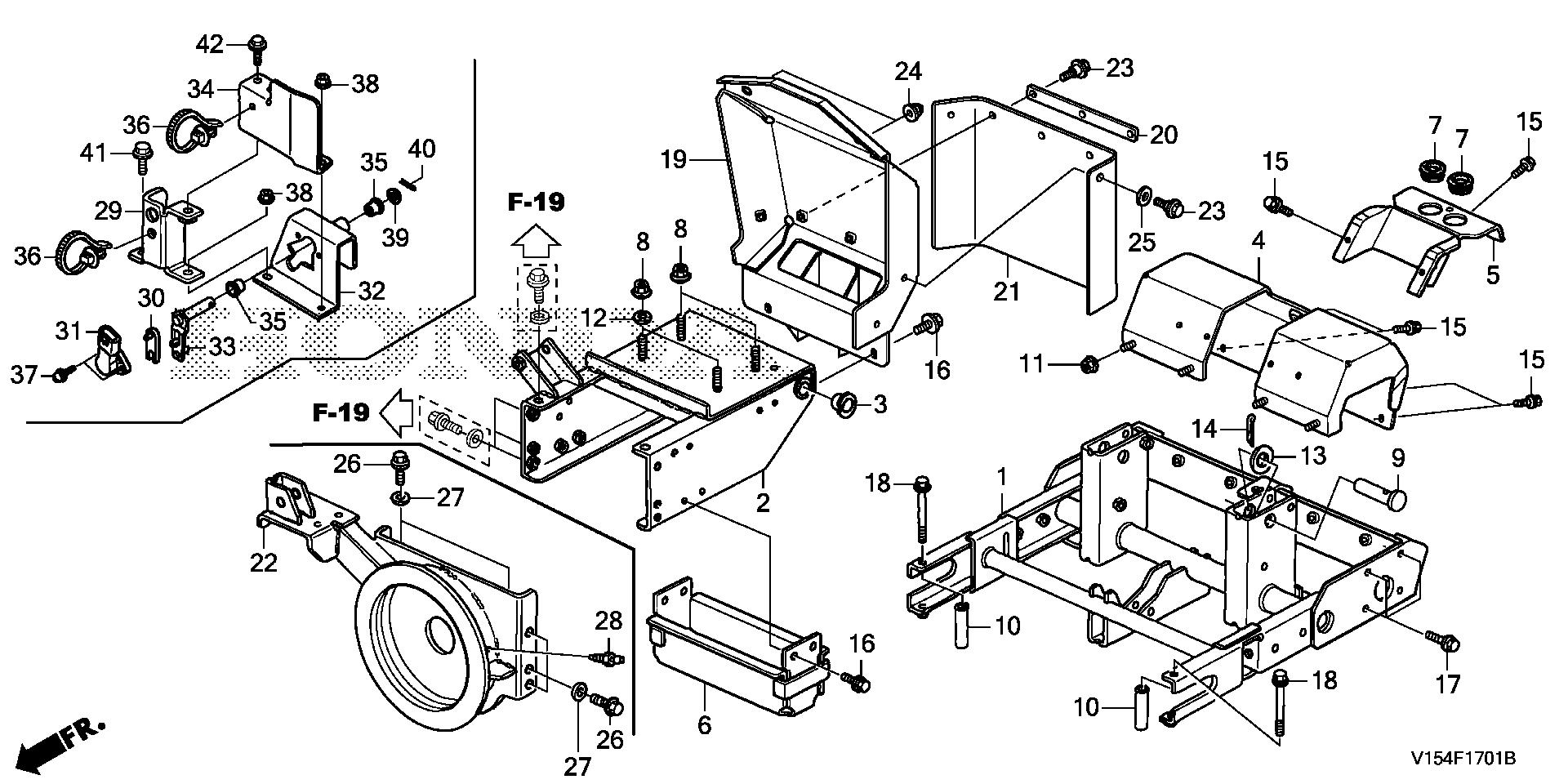

  6. FRAME (2)

WARNING: California Prop 65 Information

Ref No
Part Number
Description
Serial Range
Qty
Price
Ref No
1
Part Number
 42860-V15-N00
Description
 FRAME, CRAWLER
Serial Range
 1000001 - 9999999
Qty
Price
 $420.50
Ref No
2
Part Number
 50100-V27-000
Description
 FRAME, MAIN
Serial Range
 1000001 - 9999999
Qty
Price
 $379.30
Ref No
3
Part Number
 50154-V15-003
Description
 BUSH, FRAME
Serial Range
 1000001 - 9999999
Qty
Price
 $5.42
Ref No
4
Part Number
 63101-V15-E00
Description
 COVER, MOTOR
Serial Range
 1000001 - 9999999
Qty
Price
 $93.66
Ref No
5
Part Number
 63106-V15-E01
Description
 COVER, MOTOR (UPPER)
Serial Range
 1000001 - 9999999
Qty
Price
 $56.60
Ref No
6
Part Number
 63611-V15-F01
Description
 COVER, BELT
Serial Range
 1000001 - 9999999
Ref No
7
Part Number
 64225-KBV-000
Description
 GROMMET, TURN SIGNAL (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Qty
Price
 $4.50
Ref No
8
Part Number
 90002-S10-000
Description
 NUT, FLANGE (10MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $4.64
Ref No
9
Part Number
 90751-V15-N00
Description
 PIN, FRAME
Serial Range
 1000001 - 9999999
Qty
Price
 $17.40
Ref No
10
Part Number
 91557-V15-000
Description
 COLLAR, FRAME CRAWLER
Serial Range
 1000001 - 9999999
Qty
Price
 $17.36
Ref No
11
Part Number
 94050-06000
Description
 NUT, FLANGE (6MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $0.66
Ref No
12
Part Number
 94101-10000
Description
 WASHER, PLAIN (10MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.18
Ref No
13
Part Number
 94101-20000
Description
 WASHER, PLAIN (20MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.22
Ref No
14
Part Number
 94201-30350
Description
 PIN, SPLIT (3.0X35)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.06
Ref No
15
Part Number
 95701-06012-00
Description
 BOLT, FLANGE (6X12)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.66
Ref No
16
Part Number
 95701-08016-00
Description
 BOLT, FLANGE (8X16)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.84
Ref No
16
Part Number
 95701-08016-00
Description
 BOLT, FLANGE (8X16)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.84
Ref No
17
Part Number
 95701-08020-00
Description
 BOLT, FLANGE (8X20)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.92
Ref No
17
Part Number
 95701-08020-00
Description
 BOLT, FLANGE (8X20)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.92
Ref No
18
Part Number
 95701-08085-00
Description
 BOLT, FLANGE (8X85)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.60
Ref No
19
Part Number
 19617-V15-N00
Description
 GUARD, FAN COVER
Serial Range
 1000001 - 9999999
Qty
Price
 $88.22
Ref No
20
Part Number
 51188-V15-J00
Description
 PLATE, ENGINE GUARD SEAL
Serial Range
 1000001 - 9999999
Qty
Price
 $10.76
Ref No
21
Part Number
 51189-V15-J00
Description
 SEAL, ENGINE GUARD
Serial Range
 1000001 - 9999999
Qty
Price
 $37.32
Ref No
22
Part Number
 76735-V27-730ZA
Description
 STAY, HOUSING *NH1* (BLACK)
Serial Range
 1000001 - 9999999
Qty
Price
 $155.56
Ref No
23
Part Number
 90140-SA5-000
Description
 BOLT, SPLASH GUARD
Serial Range
 1000001 - 9999999
Qty
Price
 $9.78
Ref No
24
Part Number
 90201-428-900
Description
 NUT, CAP
Serial Range
 1000001 - 9999999
Qty
Price
 $2.22
Ref No
25
Part Number
 94101-10700
Description
 WASHER, PLAIN (10MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.10
Ref No
26
Part Number
 90163-S5A-000
Description
 BOLT, FLANGE (10X20)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.50
Ref No
27
Part Number
 90401-437-000
Description
 WASHER, PLAIN (10MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.78
Ref No
28
Part Number
 96201-10000
Description
 NIPPLE, GREASE (A.T6) (M6X1.0)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.60
Ref No
29
Part Number
 22141-V27-000
Description
 STOPPER, CLUTCH
Serial Range
 1000001 - 9999999
Qty
Price
 $29.24
Ref No
30
Part Number
 24419-V15-000
Description
 ARM, TURN LEVER
Serial Range
 1000001 - 9999999
Qty
Price
 $7.58
Ref No
31
Part Number
 35750-V15-003
Description
 SENSOR ASSY., ANGLE
Serial Range
 1000001 - 9999999
Qty
Price
 $91.60
Ref No
32
Part Number
 50106-V27-000
Description
 BRACKET, ROLLING SENSOR
Serial Range
 1000001 - 9999999
Qty
Price
 $65.18
Ref No
33
Part Number
 50132-V27-000
Description
 SHAFT, ROLLING SENSOR
Serial Range
 1000001 - 9999999
Qty
Price
 $55.86
Ref No
34
Part Number
 53999-V27-000
Description
 GUARD, FR. COVER
Serial Range
 1000001 - 9999999
Qty
Price
 $34.10
Ref No
35
Part Number
 54412-952-770
Description
 BUSH, CLUTCH LEVER
Serial Range
 1000001 - 9999999
Qty
Price
 $3.62
Ref No
36
Part Number
 91507-SNA-003
Description
 CLIP, HARNESS BAND (164.5MM) (BROWN)
Serial Range
 1000001 - 9999999
Qty
Price
 $0.64
Ref No
37
Part Number
 93893-05018-00
Description
 SCREW-WASHER (5X18) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Qty
Price
 $0.92
Ref No
38
Part Number
 94050-08000
Description
 NUT, FLANGE (8MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $0.94
Ref No
39
Part Number
 94102-08000
Description
 WASHER, PLAIN (8MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $0.96
Ref No
40
Part Number
 94201-20220
Description
 PIN, SPLIT (2.0X22)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.06
Ref No
40
Part Number
 94201-20350
Description
 PIN, SPLIT (2.0X35)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.06
Ref No
41
Part Number
 95701-08016-00
Description
 BOLT, FLANGE (8X16)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.84
Ref No
41
Part Number
 95701-08016-00
Description
 BOLT, FLANGE (8X16)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.84
Ref No
42
Part Number
 95701-08020-00
Description
 BOLT, FLANGE (8X20)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.92
Ref No
42
Part Number
 95701-08020-00
Description
 BOLT, FLANGE (8X20)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.92
